de_nuke_custom2

2024-06-15

i fixed nuke :)


de_nuke_custom ported to CS2 and significantly changed


vis bugs

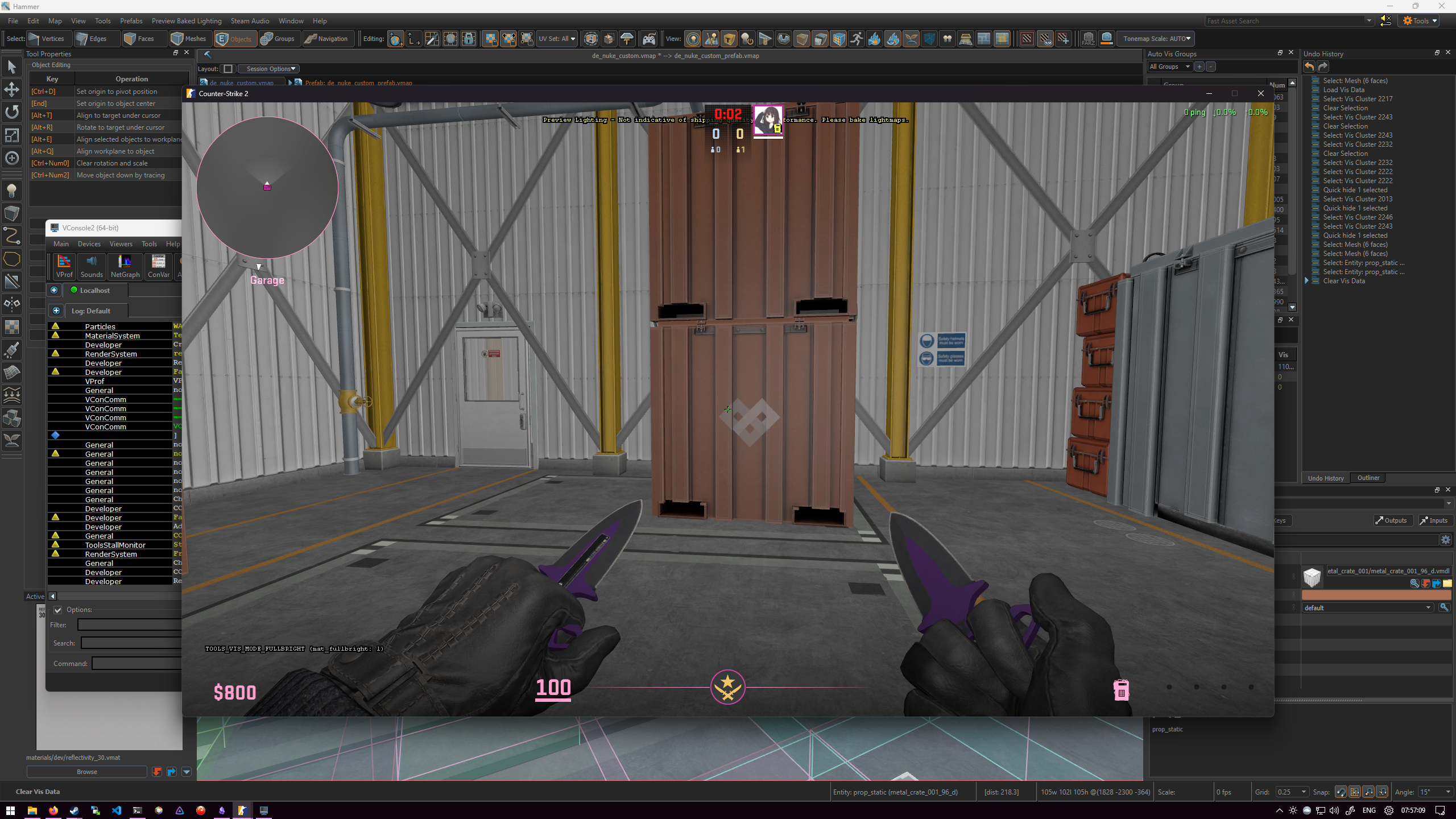

  • Pasted image 20240620075720.png
  • [ ]

creating garage doors

for doors that will be visible if they open fully in one func_door
seperate into multiple parts

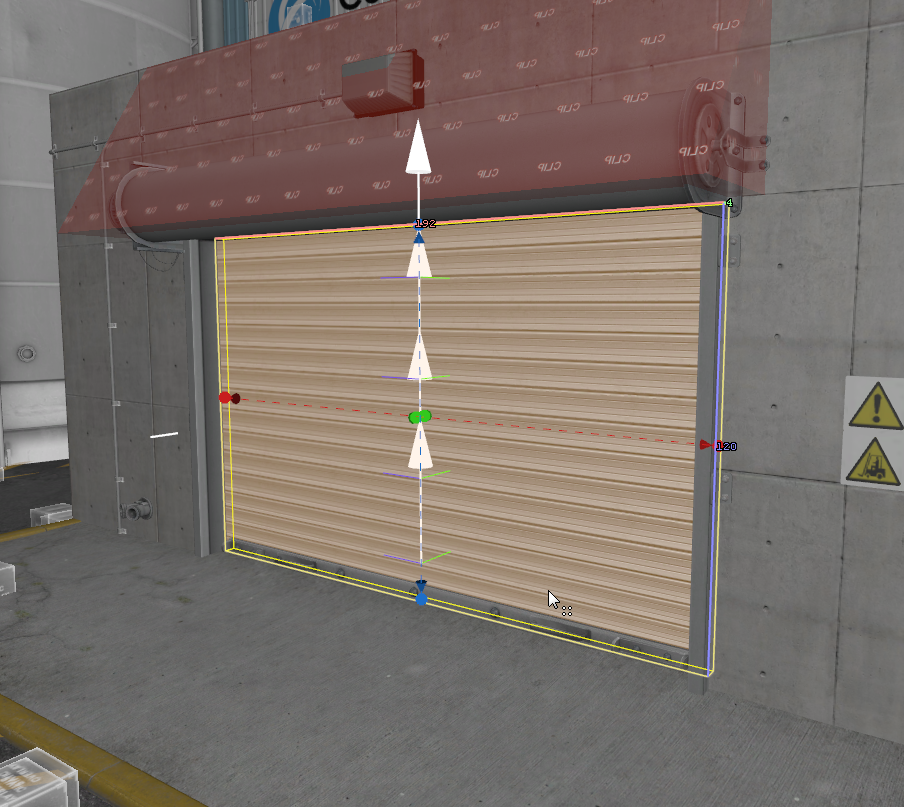

Pasted image 20240615053738.png
give all the same name like garage_door_01, on the bottom one append the name to have -bottom
change the prop bottom bit to prop_dynamic and parent it to the bottom door part
set the top part's lip to 0, then subtract the total from each, so the next might be -16 and so on
the bottom one, add to the lip so it will poke out from the top. use ~16

set all parts to be Toggle True, Use Opens False, Touch Opens False
move direction to -90, 0, 0 (for up)

create a func_button out of nodraw (so it is invisible)
create Two outputs: one for the bottom part of the door and one for the rest (as they have the same name, only one is needed.)
set buttons to be speed 100 or something,

door ajar angles

angles should follow the hammer rotational system
to make a door ajar on spawn:
set Spawn Position to Ajar
set Ajar angle to negative whatever on the left (?) or whatever
and positive on the other door if its double doors okey
leave rotation distance
set Ajar shouldn't always open to True for doors that are actually fully open

ajar doors are weird, unused

door open sides

afaik
the door rotating Positively, is "Open Backward Only" and vice versa

skybox stuff

in addonname/map

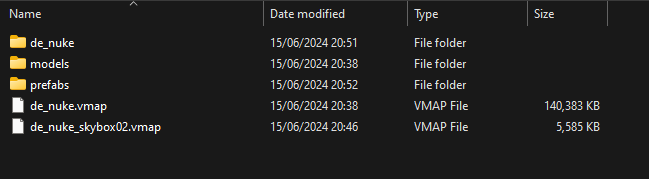

Pasted image 20240615205433.png
for skybox stuff goes as such
prefabs/de_nuke/de_nuke_skybox02/worldnodes
NOT prefabs/maps/prefabs/maps/de_nuke/de_nuke_skybox02/

Pasted image 20240615215020.png
???
Error
Failed to load file (invalid)!
This seems to be some weird thing with importing. No idea!
But I fixed this error by (again) renaming Counter-Strike Global Offensive/game/bin/win64/vpk.signatures to vpk.signatures.old or .bak or whatever
Though, after an update, I get the issue again and have to repeat the above step. I believe this may be caused by the skybox being named the same as an existing skybox (de_nuke_skybox02). I renamed it to de_nuke_custom_skybox02 and hopefully this resolves the issue.

old position of sky_camera -40, -308 192
moved the skybox map such that the sky_camera is at 0 0 0
(did this matter? dont think so, but that's what is suggested on valve developer wiki so)

other

Final compile took 5h40
is there no longer any way to modify bot behaviour?? the nav_ commands don't seem to work, and I can't figure much out in the editor..
